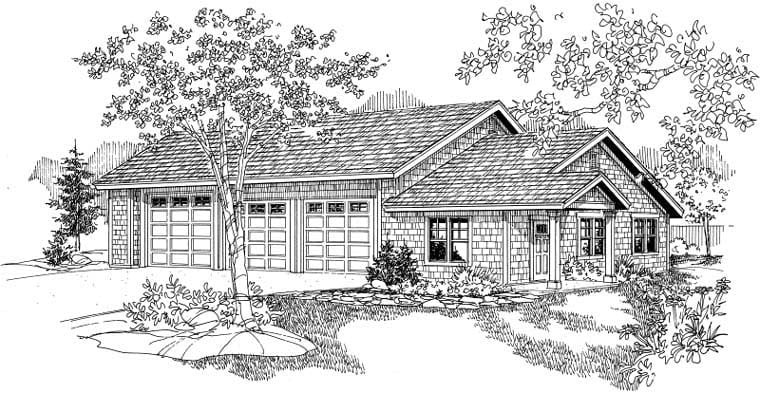

Garage home plans. This Craftsman garage plan features three garage doors. Two doors are 10' wide and 10' tall, while the RV door is 12' wide and 12' tall. This garage can house up to 6 cars, or 1 RV and 4 cars. One the right side of the garage is a recreation room. There is also a hobby room and full bathroom.
Artist's Rendering: An artist's drawing of the home, usually viewed from the front.
Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.
Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.
Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.
Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting and electrical outlets.
Receive a FREE modification estimate:
1) Please Email Us your changes. (Itemized list of changes with details)
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
Q:What are the width dimensions of the enclosed garage/rec. room and what are the covered porch dimensions?
The garage dimensions are 41’6” x 35’
The Rec Room dimensions are 15’6” x 22’8”
The covered porch is 6’ x 12’
Q:What is the peak height on both the taller side and the lower side of the roof? (sales rep: Bonnie Drew 800-482-0464 ex. 405)
A:Below are the measurements requested on Garage 20-042.
Roof Height @ Garage: approx. 23’-9”
Roof Height @ Recreation Room: approx. 19’-9”
Q:Can you send me picture of more plans like this one
A:Please see plans 59459, 59441 and 59480
Q:What are the heights of the 3 garage door openings and the ceiling? Thanks.
A:The RV Garage door is 12’ wide and 12’ tall while the two smaller doors are 10’ wide and 10’ tall. The garage has a 13’ top plate while the hobby and recreation room have 9’ top plates.
Common Q & A
Q:Can I make modifications to this plan?
A:Yes you can! Please click the "Modifications" tab above to get more information.
Q:What is the estimated price to build this plan?
A:The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
